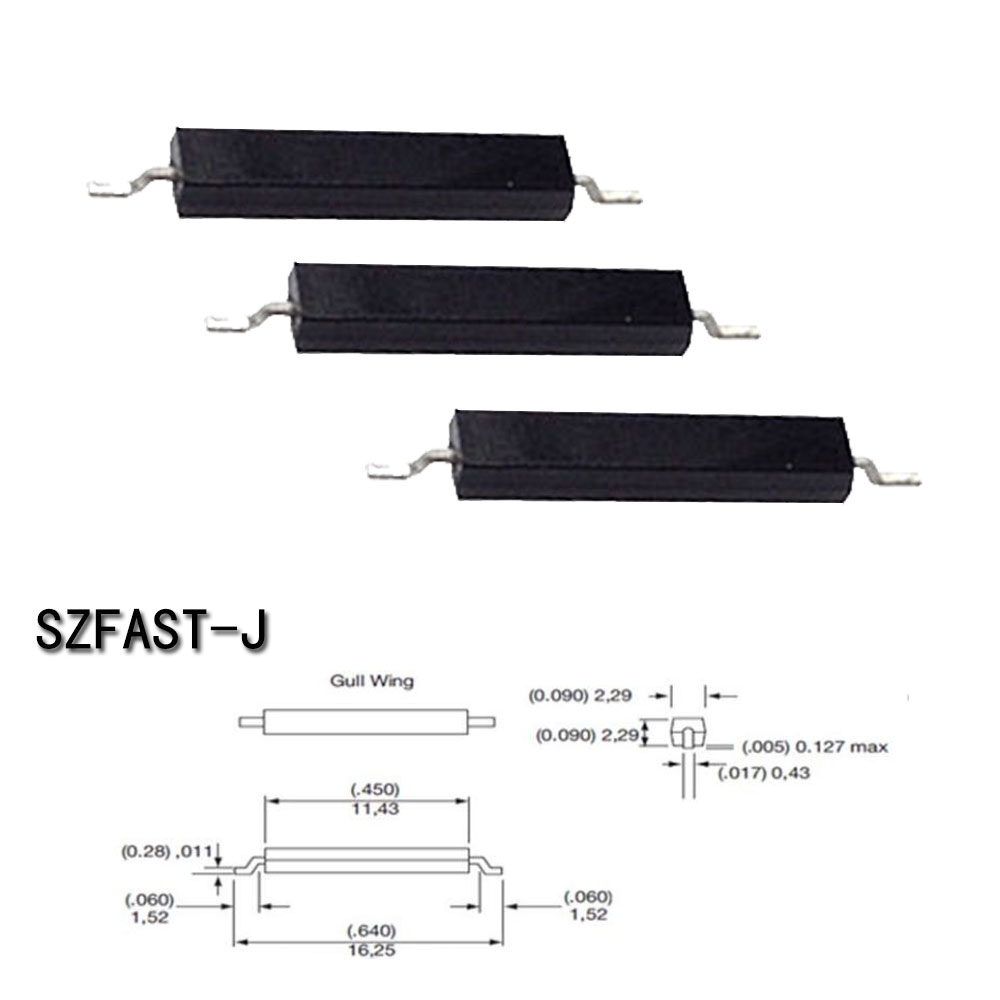

SZFAST-JSMDH
触点形式:常开(A)
外壳尺寸:11.4*2.3*2.3mm
开关参数:10W/200V/0.5A
外壳尺寸:11.4*2.3*2.3mm
开关参数:10W/200V/0.5A

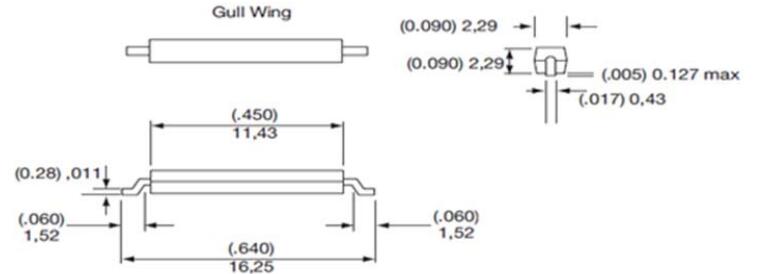

一、尺寸 (DIMENSIONS)
二、技术参数 (Technical Parameters)
品牌 / 特点 Brand / Feature | COTO |
较大负载长寿命 |
型号 Type | RI-02SMD | |
触点方式 Contact Form | Form A | |
动作值 Operate Range | AT | 5-19* |
释放值 Release Range | AT | 2-17* |
最大开关功率 Switching Power - max. | W / VA | 10 |
最大开关电压 Switching Voltage - max. | V (DC / AC) | 200 / 140 |
最小击穿电压 Breakdown Voltag - min. | V | 200-230 |
最大开关电流 Swtiching Current - max. | mA (DC / AC) | 500 / 500 |
最大载流电流 Carry Current - max. | A (DC,AC) | 0.5 |
最大接触电阻 Contact Resistance - max. | mOhms |
115 |
响应频率 Resonance Frequency - typ. | Hz | 10800 |
工作温度范围 Operating Temperature | oC | -55 ~150 |
* AT值可根据客户要求订制。请向当地销售代表咨询。
* Customer specific AT ranges and modifications are possible. Please contact our local sales.
